Description

Technical Specifications
Film Thickness (without liner): 0.16 mm

Film Thickness (with liner): 0.32 mm

Film Type: Mid-grade polymeric, multilayered calendared vinyl with air-release channels

Adhesive: Transparent Henkel solvent-based acrylic; ultra weather-resistant; viscosity: 1000–3000 cps; dry thickness: 12 μm

Release Liner: Felix Schoeller double-sided PE-coated Kraft paper (20-104-20-1.9), printed; ISO 9001, ISO 14001, OHSAS 18001 certified

Storage Life: Up to 2 years at +10°C to +20°C, 50% RH, in original packaging, out of sunlight

Durability/Warranty: Refer to datasheet (click for more)

Dimensional Stability: Shrinkage < 2%

Plasticizer Content: 28%–38%

Breaking Strength:

23.7 N/10mm (ASTM D3759)

6.4 N/10mm (ASTM D3330)

UV Aging Test Results
Test Method: ASTM D4329-13 Cycle A, ISO 105-A02:1993/Cor.2:2005

Result: Grade 3–4 (Pass)

Conditions: UVA-340 lamp at 60°C BPT, 0.89 W/(m²•nm) @ 340nm, 8h UV + 4h condensation at 50°C

Duration: 44 hours

Installation Guidelines
Application Temperature: +17°C to +18°C

Service Temperature Range: -45°C to +45°C

Tools Required: Standard squeegee

Conformability: Suitable for smooth to moderately curved surfaces

Directional Material: Yes

Recommended Overlap Width: 3–4 mm

Post-heating Temperature: 90°C

Packaging Details

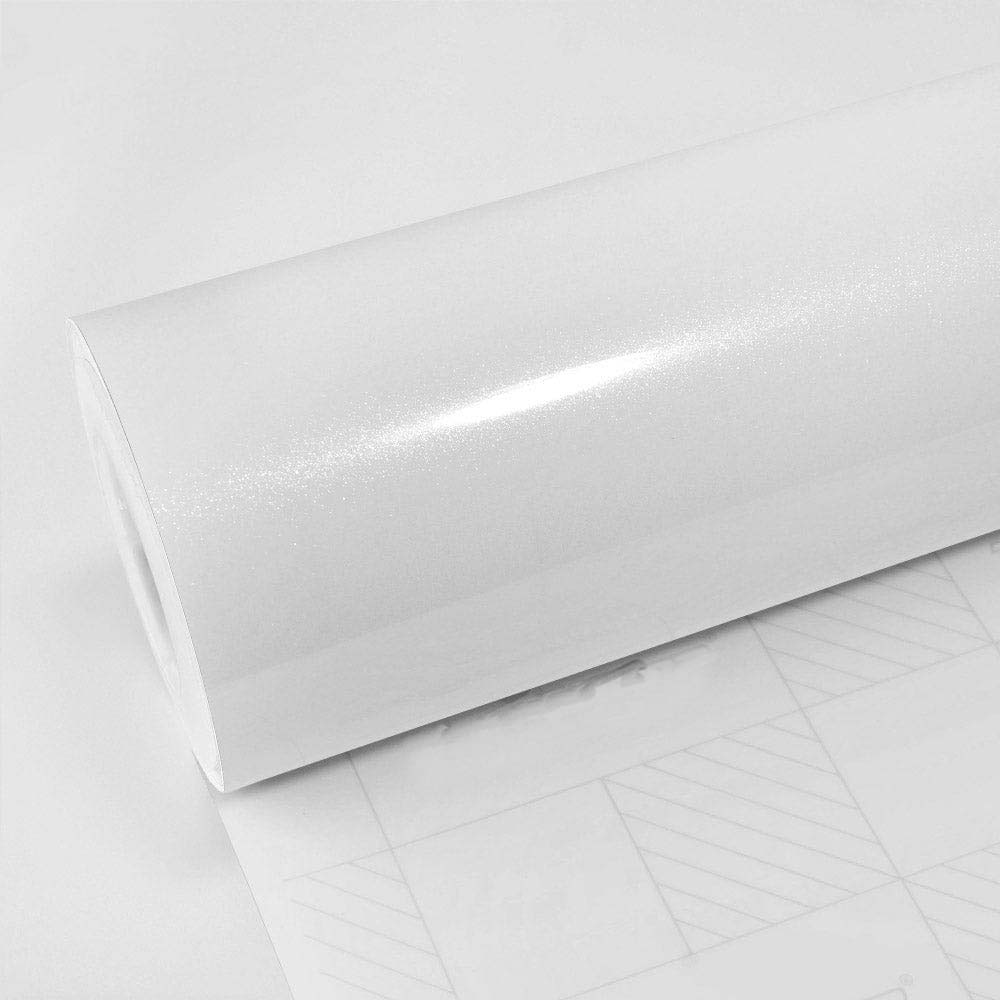

Roll Size: 152 cm (width) × 15 m (length)

Total Weight: 14 kg

Important Notes
On-screen colors may vary. Always refer to a physical swatch for accurate representation.

To ensure color consistency, use rolls from the same production LOT number.

Surface scratches may occur during installation or daily use and are not covered under warranty.
