Description

Technical Specifications

• Film Thickness (without liner): 0.12 mm

• Total Thickness (with liner): 0.28 mm

• Film Type: Medium-grade polymeric calendared vinyl

• Air-Release Technology: Yes

• Series: 180 Series

Adhesive Details

• Type: Henkel solvent-based acrylic

• Appearance: Transparent

• Viscosity: 1000–3000 cps

• Dry Adhesive Thickness: 12 μm

• Weather Resistance: Ultra-resistant to harsh environments

Release Liner

• Material: Felix Schoeller double-side PE-coated Kraft paper

• Model: 20-104-20-1.9 (printed)

• Coating: Solventless silicone (one side), air-release optimized

• Certifications: ISO 9001, ISO 14001, OHSAS 18001

Storage & Shelf Life

• Storage Temperature: +10°C to +20°C

• Humidity: 50% RH

• Conditions: Store in original packaging, away from sunlight, dry & clean

• Shelf Life: Up to 3 years

Performance Metrics

• Dimensional Stability: ≤ 0.20% shrinkage

• Plasticizer Content: 25–32%

• Breaking Strength: 30.7 N/10mm (ASTM D3759)

• 180° Peel Strength to Steel: 9 N/10mm (ASTM D3330)

UV Aging Test

• Standard: ASTM D4329-13 Cycle A / ISO 105-A02

• UV Lamp Type: UVA-340

• Conditions:

  • 8h UV exposure @ 60±2.5°C

  • 4h condensation @ 50±2.5°C

  • Exposure Duration: 48h

• Result: Grade 4–5 lightfastness

Installation Guidelines

• Application Temperature: +18°C to +20°C

• Service Temperature: -30°C to +30°C

• Tools Required: Standard squeegee with soft buffer

• Conformability: Smooth and moderately curved surfaces

• Film Directionality: Yes

• Recommended Overlap: 3–4 mm

⚠️ Important: Always remove the protective cap before installation.

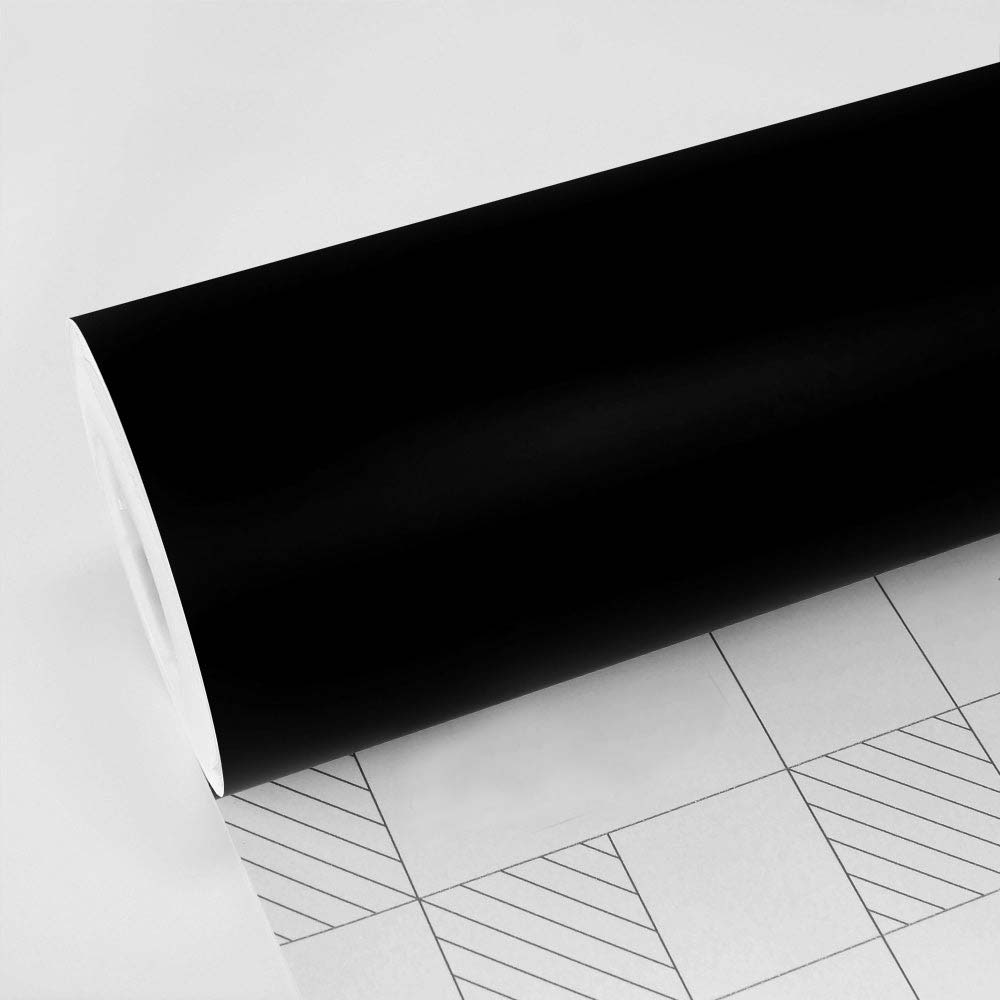

Packaging

• Roll Width: 152 cm

• Roll Length: 15 m

Please Note

• Product colors and finishes may appear slightly different on screens. Always verify with a physical color swatch.

• Use rolls from the same production LOT number to ensure color consistency.

• This film may scratch during installation or regular use. Scratches are not covered under warranty.
