Description

Technical Specifications

• Film Thickness (without liner): 0.12 mm

• Total Thickness (with liner): 0.28 mm

• Film Type: Medium-grade polymeric calendared vinyl with air-release channels

• Series: 180 Series

Adhesive Details

• Type: Henkel solvent-based acrylic adhesive

• Color: Transparent

• Viscosity: 1000–3000 cps

• Dry Adhesive Thickness: 12 μm

• Weather Resistance: Ultra-durable in extreme climates

Release Liner

• Material: Felix Schoeller double-side PE-coated Kraft paper

• Model: 20-104-20-1.9 (printed)

• Features: One side solventless silicone-coated, air-release structure

• Certifications: ISO 9001, ISO 14001, OHSAS 18001

Storage & Shelf Life

• Shelf Life: Up to 3 years

• Storage Conditions:

  • Temperature: +10°C to +20°C

  • Humidity: 50% RH

  • Store in original packaging, away from direct sunlight, in a clean, dry environment

Performance & Testing

• Dimensional Stability: ≤ 0.20% shrinkage

• Plasticizer Content: 25–32%

• Breaking Strength: 30.7 N/10mm (ASTM D3759)

• 180° Peel Strength (to steel): 9 N/10mm (ASTM D3330)

UV Resistance (Light Aging Test)

• Standard: ASTM D4329-13 Cycle A / ISO 105-A02

• Conditions:

  • 8h UV @ 60±2.5°C (UVA-340, 0.89 W/m² @ 340nm)

  • 4h condensation @ 50±2.5°C

  • Duration: 48 hours

• Result: Color fastness grade 4–5

Installation Guidelines

• Application Temperature: +18°C to +20°C

• Usage Temperature Range: -30°C to +30°C

• Tools Needed: Standard squeegee with soft buffer

• Conformability: Best on smooth and moderately curved surfaces

• Film Direction: Yes

• Recommended Overlap: 3–4 mm

🔧 Note: Always remove the protective cap before installation.

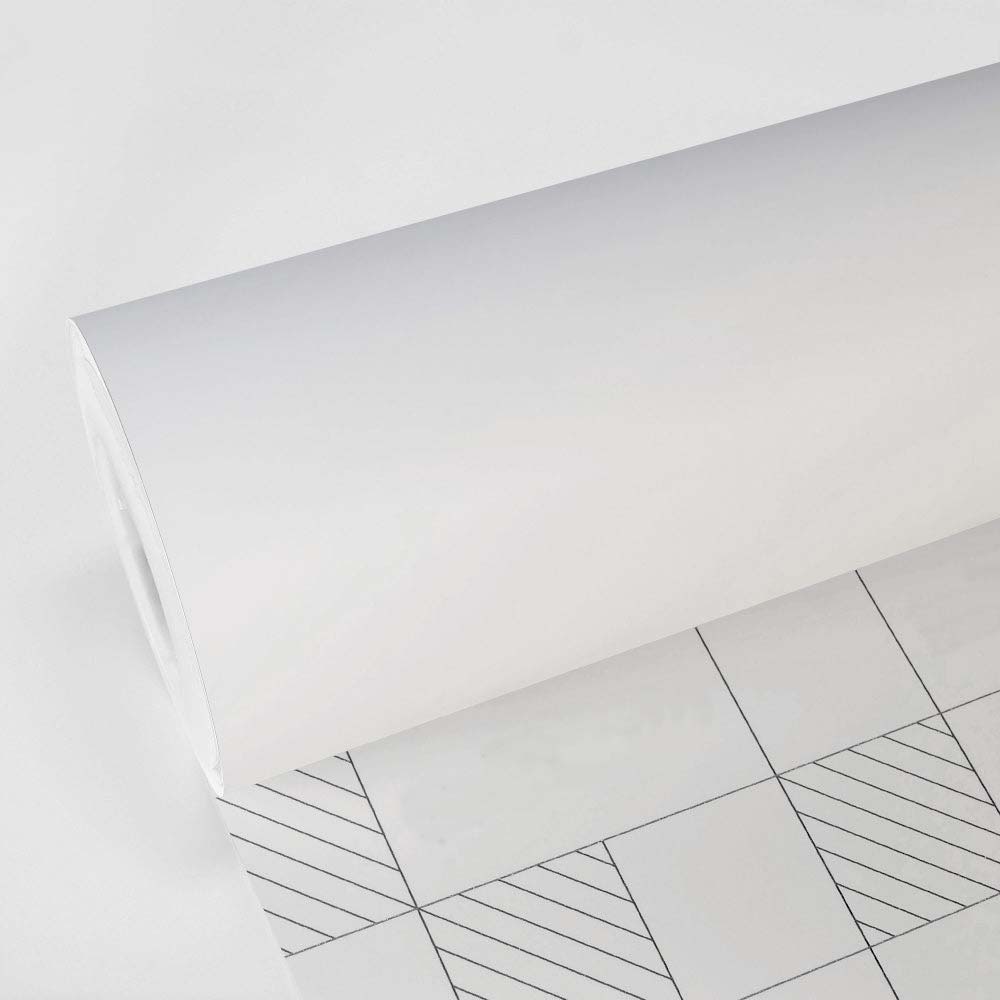

Packaging

• Roll Width: 152 cm

• Roll Length: 15 m

Important Notes

• Colors and textures displayed on screens are for reference only. For true color accuracy, please consult the physical color swatch.

• Always use rolls from the same production LOT to avoid slight color variation.

• Scratches during installation or daily use are not covered under warranty.
