Professional Construction/home Decorative Films And Color Vinyl Roll Manufacturer And Supplier

Paint Protection Film

"High quality, multiple specifications, competitive price "
"Providing a one-stop PPF solution for automotive industry professionals"

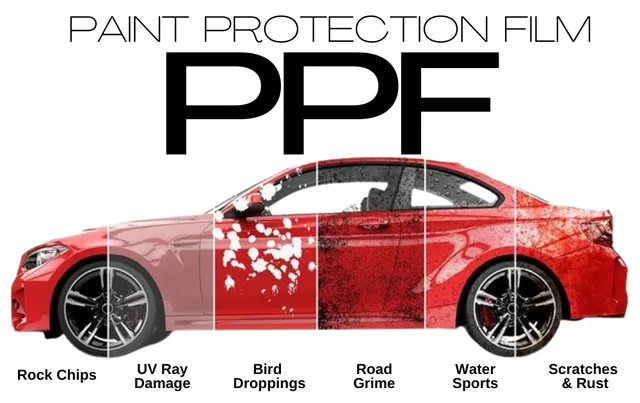

WHAT IS Paint Protection Film?

Paint Protection Film (PPF) is a high-tech, multi-layer thermoplastic polyurethane (TPU) film. It is typically made of transparent polyurethane material with a special hydrophobic and anti-fouling nano-coating on the surface. The thickness of PPF usually ranges from 6-12 mils (0.15-0.30 mm), varying according to different application requirements and protection levels.

PPF's Specific Function Of Layers

Top transparent coating: Provides UV resistance, anti-fouling, and hydrophobic properties.Self-healing layer: Contains special thermosensitive polymers that can repair minor scratches.Polyurethane body: Provides main protective function, absorbs impact and disperses energy.Pressure-sensitive adhesive layer: Ensures PPF adheres firmly to the car body while allowing damage-free removal

Flexible customization Your own brand

Customized Paint Protection Film Solution High Quality, Low Cost.
20 years of OEM/ODM experience, providing flexible sizes and customized options for global distributors

– Width: 0.1m – 2.0m
– Length: 0.1m – 50m
– Support CAD drawing cutting
– Irregular shape customization



– Range: 4 mil (0.1mm)- 12 mil (0.3mm)
– Non-standard thickness is available



– Enhanced UV protection
– Self-healing capability adjustment
– Specialized formulations for special surfaces



– Light coloring options
– Adjustable transparency

– Smooth, matte, textured surfaces

– Chemical resistance adjustment
– Enhanced Scratch Resistance
– Static protection

 – Customized Packaging
– Branded Printing
– Proprietary coding system

– Recyclable materials
– Biodegradable option

Various Quality Levels To
Meet Various Needs

TPU-A Series

⭐⭐⭐⭐⭐

TPU-B Series

⭐⭐⭐⭐

TPH Series

⭐⭐⭐⭐

TPU-COLOR Series

⭐⭐⭐⭐⭐

TPU-Transparent

⭐⭐⭐⭐⭐

FAQ

Have any questions about our products?

What are the standard sizes of Paint Protection Film?

A: Our paint protection film is available in the following standard sizes:
– Width: 0.5m, 1.0m, 1.22m, 1.52m
– Length: 5m, 10m, 15m, 20m, 30m
We also provide customized size service to meet special needs.

What is the thickness of your paint protection film?

A: We offer a variety of thickness options:

– 6.5 mil (0.165mm): most commonly used, suitable for most applications
– 8.5 mil (0.216mm): provides additional protection and is suitable for high wear areas
– 9.5mil (0.241mm): Highest level of protection, suitable for extreme conditions

How do I choose the right film thickness?

A: The choice of film thickness depends on the application area and the level of protection required:
– 6.5 mil is suitable for most areas of the body
– 8.5 mil is recommended for vulnerable areas such as front bumpers, hood leading edges, etc.
– 9.5 mil for off-road vehicles or vehicles that are frequently driven in harsh environments.

How much area can be covered by one roll of Paint Protection Film?

A: The area covered depends on the roll size. For example, a roll of 1.52m wide x 30m long film can cover approximately 45.6 square meters. However, the actual area to be covered will vary depending on the vehicle model, installation technique and amount of waste material.

How much material do I need to complete a full car cover?

A: The amount of material required for a full car cover varies depending on the size of the vehicle. Generally speaking:
– Small car: approximately 15-20 square meters
– Medium Vehicle: approximately 20-25 square meters
– Large car/SUV: approx. 25-35 square meters
It is recommended to prepare an additional 10-15% of materials for unforeseen circumstances.

Do you offer pre-cut kits?

A: Yes, we offer pre-cut kits for most common vehicle models. These kits are precisely cut to the dimensions of the specific vehicle and can significantly reduce installation time and material waste.

How much material do I need if I only want to protect certain parts of my vehicle?

A: The following are approximate amounts for common areas:
– Front bumper: 1-2 square meters
– Hood: 2-4 square meters
– Front wing panels (each side): 0.5-1 square meter
– Side skirts (per side): 1-2 square meters
– Rear bumper: 1-2 square meters

Can the paint protection film be cut into any shape?

Yes, our paint protection film can be cut into any shape as needed. It has good ductility and adaptability to fit complex curved surfaces.

Is there a minimum order quantity for your paint protection film?

A: For standard sizes, we usually have no minimum order quantity. However, for custom sizes, there may be a minimum order requirement depending on the complexity of the customization.

Can I purchase small pieces of Paint Protection Film for localized repairs?

A: Yes, we offer small sized repair sheets, usually 20cm x 20cm or 30cm x 30cm, for localized repairs or small area protection.

How to choose the width of paint protection film?

A: Consider the following factors when selecting the width of the film:
– Width of vehicle components (e.g. hood, roof)
– Ease of installation (wider films may be more difficult to maneuver)
– Reduction of seams (selecting the proper width will reduce or avoid visible seams)

Does Paint Protection Film have a shelf life? How long can I store unused material?

A: Our Paint Protection Film can be stored for up to 2 years under proper storage conditions (protected from light, at a constant temperature and in a dry environment). It is recommended that it be used within 12 months of purchase for optimum performance.

Can your paint protection film be used on non-automotive surfaces?

A: Yes, although primarily used on automobiles, our Paint Protection Film can also be used on other smooth surfaces that need protection, such as electronic equipment, furniture, boats, etc.

Can it be spliced if there is not enough material during installation?

A: Although splicing is technically possible, we do not recommend it as the seams may affect the aesthetics and protection. It is recommended to use a single piece of membrane large enough to cover the entire area.

Can your films accommodate the curved surfaces and contours of a vehicle?

A: Yes, our paint protection films have excellent ductility and adaptability to fit the complex curves of most vehicles. However, for particularly complex shapes, specialized installation techniques may be required.
